Elizabeth Quay Bridge
Top
DESIGNER


Arup Associates
Top
CONTEXT

Relationship with the location
Arup Associates, Elizabeth Quay Bridge, Perth, Western Australia
Top
DESCRIPTION

An elegant pedestrian and cycling bridge that spans the inlet of the Swan River in central Perth
Arup Associates, Elizabeth Quay Bridge, Perth, Western AustraliaThe bridge is effectively a gateway to the central business district, its curvaceous form visually linking the river with the city.

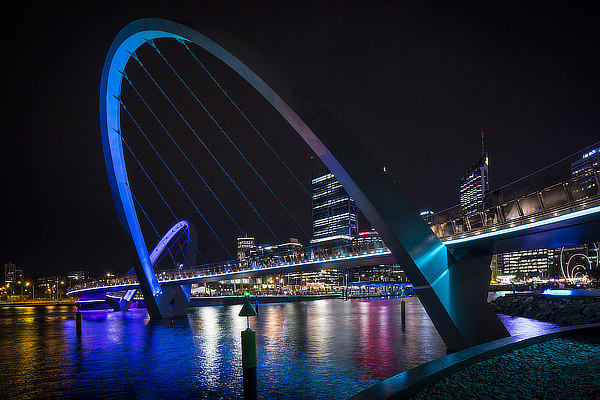

Arup Associates, Elizabeth Quay Bridge, Perth, Western AustraliaThe bridge was officially unveiled to the public in January with a breathtaking outdoor light and water display showcasing the precinct inlet as the heart of the development. A striking architectural feature, the 22m high cable-stayed bridge impressive 360 degree views across the Swan River and the Perth CBD.

The bridge is central to the bold plan by the West Australian Government to revitalise central Perth, Elizabeth Quay features a stunning 2.7ha inlet and 1.5ha promenade, surrounded by a vibrant mix of offices, apartments, hotels, shops, bars and restaurants. The project returns the city’s focus to the Swan River and provides a world-class waterfront destination for Perth.

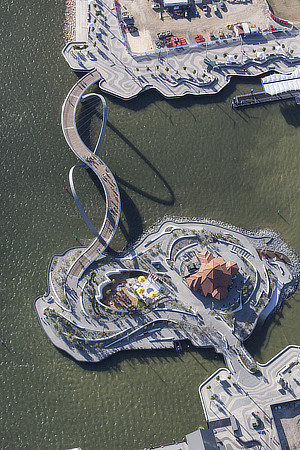

The 120m long pedestrian and cyclists’ bridge allows for continuous movement around the Quay. It connects The Island with the western promenade and Williams Landing, and also links The Island onto the popular ‘bridges’ recreational circuit around the Swan River. Visitors to the precinct can now run, cycle or even ride a Segway across the bridge as they wander around the promenades and explore the many attractions on offer.

Arup was engaged by managing contractor Leighton Broad to design the project, and worked closely with the Metropolitan Redevelopment Authority to provide multi-disciplinary services from detailed design through to construction completion.
Alistair Avern-Taplin, Perth Office Leader, Arup
Arup Associates, Elizabeth Quay Bridge, Perth, Western Australia“It’s very rewarding to see our design come to life. We are incredibly proud to have been involved in delivering the bridge and being a part of the transformation of Perth’s Swan River waterfront. It is an iconic project that will forever change the way people enjoy one of the country’s most vibrant and diverse cities.”

“The architect’s unique sculptured form for the cable-stayed bridge presented an interesting design challenge which Arup’s engineers enjoyed creating design solutions for.”
The design process

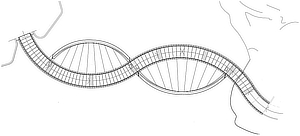

Arup Associates, Elizabeth Quay Bridge, Perth, Western AustraliaGiven the bridge’s unique but constrained location, and the considerable level change required for clearance height for vessels, Arup’s team of architects and engineers knew that the bridge’s design needed to be longer and more complex than a simple ‘straight line bridge’. In response the architects, using parametric design tools, started to play with complex curves, therefore lengthening the path, while the engineers developed a structural diagram to mirror this proposal. This resulted in the beginnings of a design that echoed what the bridge needed to provide functionality-wise, while incorporating aesthetically appealing design curves, an easily-accessible pathway and a sound structure.

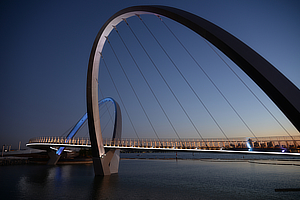

Arup Associates, Elizabeth Quay Bridge, Perth, Western AustraliaThe concept design was driven by a desire to have a simple but iconic form that respected the Quay’s existing master plan, while ensuring that the structure took full advantage of its spectacularly unique location.

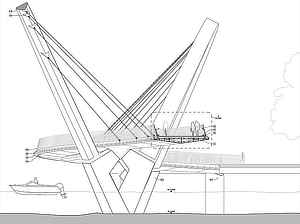

The architects and engineers worked closely together from the outset of the design using analysis software to create ef ciencies in the arches geometry relative to the bridge deck geometry. This ensured that the arches dramatic leans were optimised in their cross-sectional form with the critical structural support they provide.
Nick Birmingham, Project Architect, Arup Associates, London
Arup Associates, Elizabeth Quay Bridge, Perth, Western Australia“The local and luxurious Jarrah timber decking, resonates strongly with the West Australian maritime context. In contrast, the complex parametric steel forms, refined stainless steel details and dynamic lighting solutions propel the project into the contemporary context.”
Top
VIDEO


Top
MATERIALS

steel, wood
Top
LOCATION

Continent
Oceania
Nation
Australia
State
Western Australia
Town
Perth


Top
MAP


Top
TYPOLOGY

ARCHITECTURE
Transport buildings and structures
Bridges and walkways
Top
CHRONOLOGY

Project
2013 - 2014
Realisation
2014 - 2016
Top
BIBILIOGRAPHIC REFERENCES


Arup Associates, Elizabeth Quay Bridge, Perth, Western Australia"Elizabeth Quay Pedestrian and Cyclist Bridge, Australia", The Arup Journal 1/2016, pp. 22-31
Top
CLIENT


Metropolitan Redevelopment Authority (MRA)
Top
AMOUNT


A$ 440,000,000
Top
DIMENSIONAL
DATA

Lenght
m. 120
Height
West arch m. 20
East arch m. 22
Weight
480 tonnes
2.5 tonnes per metre of bridge
Top
STRUCTURES


Arup
Top
STAFF

Project architect
Alistair Avern-Taplin [Arup's Perth office Leader]

Nick Birmingham [Architectural team | Arup's London Office]

Stewart Buxton [Lead Structural Engineer and Project Manager | Arup's Perth office]

Clayton Riddle [Responsible for implementation of digital workflows and steelwork design | Arup's London Office]
Engineering
Arup, Perth
General contractor
CPB Contractors
Design team
Arup:
Andrew Allsop, Alistair Avern-Taplin, Nick Birmingham, Peter Burnton, Stewart Buxton, Efren Cerrero, Anthony Ferrau, Anastasia Fragoulis, Kathy Franklin, Ruby Heard, Milena Kovac, Mira Lee, Michael Lin, Angus Low, Lewis MacDonald, Georgie Prie, Anu Ramachandran, Clayton Riddle, Nic Scanlan, Ed Spraggon, Julia Summers, Kai Tan, Jess Watts
[Structural engineering and facade services, civil engineering, geotechnical engineering, electrical engineering, materials specialists, advanced technology and research (AT&R), wind engineering, vibration engineering, and naval architecture]
Top
CREDITS


Photos © Jacaranda | Nick Birmingham | Arup Associates
Drawings © Arup Associates
Text edited by Arup Associates
Courtesy of Arup Associates
