BUILDING


Dalian Football Stadium
Top
DESIGNER


UNStudio
Top
DESCRIPTION

Design
UNStudio Dalian Football StadiumThe design for the 38,500 m2 stadium has been inspired by the colourful layering and overlapping of the ancient Chinese cuju football. The design weaves together the collective spirit of the spectators with the public realm and the urban context of the building. The main stadium houses spectator seating, TV broadcasting centre, administration areas, VIP lounge, players facilities and public concourse in a layered envelope which extends on ground level to provide outdoor public areas above decked parking facilities. In addition, the design incorporates two training fields on the 144,000 m2 site.

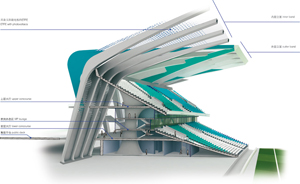

According to Ben van Berkel, “The design of the Dalian Football Stadium is inspired by the classic Chinese football, which was made by layering coloured bamboo. For the stadium design we appropriated this effect to generate a double-layered roof structure. This structure operates as a double concourse enclosure, encircling the tribunes. Splits and openings in between broad bands of the lattice structure enable views from the outside in and from the inside out.”
Dalian
UNStudio Dalian Football StadiumWith a population of 5.7 million Dalian is the largest port in Northeast China and forms an important centre of trade, industry and tourism. In 1984, the State Council approved Dalian as a coastal open city during China's opening up to the West. In the mid-90s Dalian began an ambitious undertaking to become a world-class port city on the level of Rotterdam, and a host to international events. Radical city planning policies were implemented, improving the aesthetic appearance of the city and eventually transforming the centre of Dalian with architectural styles reminiscent of the Mediterranean and Sweden, thereby making it a unique city in China.
UNStudio’s design for the Dalian Football Stadium reacts to this setting by orientating the building in order to maximise both the use of existing transport modes and the views of the surrounding sea and mountains, whilst providing a unique sporting venue for the population of the Dalian.
Stadium design
UNStudio Dalian Football StadiumEssential to the stadium typology is the experience of the spectator. Aside from the basic function of a stadium as an arena for spectator sport with one central focal point, stadium design requires the consideration of many essential structural, programmatic, contextual, infrastructural and stylistic elements and the incorporation of these into a strong, integral gesture. Infrastructural considerations include ease of access and evacuation, visitor routing and parking facilities, while contextual considerations form an important element in both the relationship of the stadium to the city, its surroundings and its orientation with regard to nearby transport modes. UNStudio’s design for the Dalian stadium presents an inclusive approach to stadium design where the articulation of the structure and the openings and overlapping moments of its double-layered envelope serve as the starting point for visitor experience and programmatic and infrastructural requirements, in addition to heightening spectator experience in terms of proximity to the playing field.

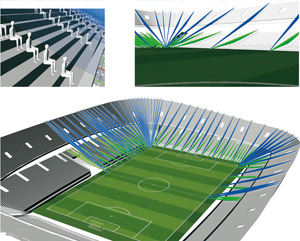

Ben van Berkel says, “A key feature of the Dalian Stadium is the proximity of the spectators to the pitch, thereby ensuring the best views from the tribunes and creating a true sense of engagement. As in theatre design specific views and focal points are required. In the Dalian stadium, we envisioned the playing field as the stage. A two tier seating system and curved outlines optimise the corners of the tribunes and allow the spectators to be as close as possible to the playing field.”
If you haven't already clicked on the photo strip at the top of the page, for the gallery of photos and drawings, enter here
Top
ECO-SUSTAINABILITY

UNStudio Dalian Football Stadium
Top
LOCATION

Continent
Asia
Nation
China [Zhōngguó/Zhōnghuá]
Province
Liaoning
Town
Dalian


Top
TYPOLOGY

ARCHITECTURE
Sports buildings
Stadiums, grandstands
Top
CHRONOLOGY

Project
2009     project winner of limited competiton
Realisation
2009 - 2011
Top
CLIENT


Dalian City Bureau of Urban Planning
Top
DIMENSIONAL
DATA

Capacity
44,000 spectators
Surface
site sq.m. 144,000
building sq.m. 38,500
Top
STRUCTURES


ARUP Shanghai
Top
STAFF

Project architect
Ben van Berkel, Caroline Bos, Astrid Piber
Design team
Nuno Almeida, Ger Gijzen, Cynthia Markhoff, Luis Etchegorry, Shu Yan Chan, Ramon van der Heijden, Marcin Koltunski, Fernie Lai, Patrik Noome
Engineering
Arup International Consultants (Shanghai) Co., Ltd.
Sports facilities consultant
ASS Planungs GMBH Freie Architekten, Germany
Transport planning
MVA Hong Kong Ltd.
