China UnionPay Tower
Top
DESIGNER


gmp - von Gerkan, Marg und Partner
Top
CONTEXT

Location
gmp von Gerkan Marg und Partner, Meinhard von Gerkan, China UnionPay Tower, Shanghai, China, sbp schlaich bergermann partner
Top
DESCRIPTION

.

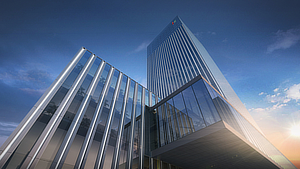

gmp von Gerkan Marg und Partner, Meinhard von Gerkan, China UnionPay Tower, Shanghai, China, sbp schlaich bergermann partnerIn 2015, the architects von Gerkan, Marg and Partners (gmp) were able to win the competition for the construction of the new global headquarters of China UnionPay in Shanghai. Now the practice has been commissioned to design the 150 meter high tower which, with its vertically structured glass facade, opens up to the surroundings and offers an impressive view across the former Expo area and the banks of the Huangpu River.

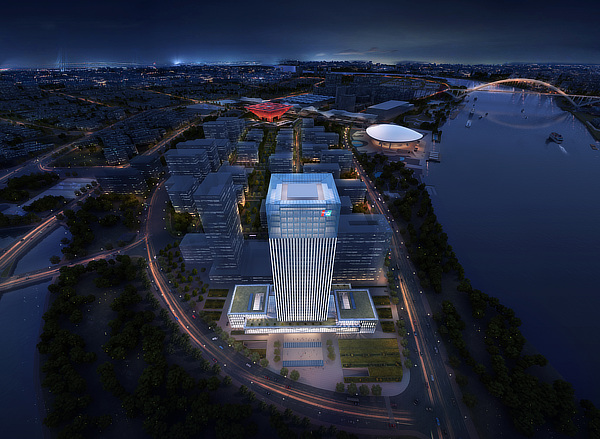

gmp von Gerkan Marg und Partner, Meinhard von Gerkan, China UnionPay Tower, Shanghai, China, sbp schlaich bergermann partnerIn this prominent and conspicuous position on the former Expo area, directly adjacent to the Huangpu River, China UnionPay (CUP), the most important credit card company and payment handler in China and Asia, is planning to build a new headquarters. The building, with a gross floor area of over 90,000 square meters and a height of 150 meters, is at the edge of an urban development ensemble in this newly developed area.

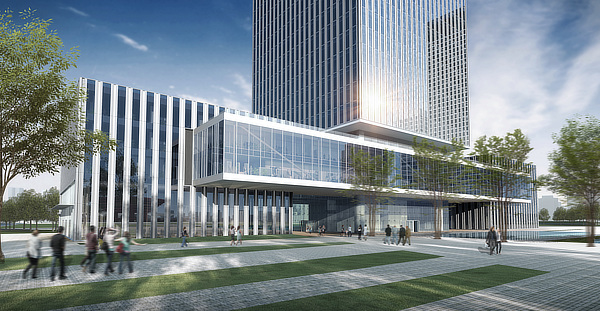

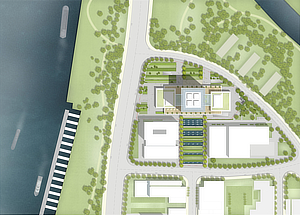

In its layout, the design is made up of three squares, with the central high-rise tower and the flanking five-story base buildings slightly offset to suit the geometry of the site. A glass bridge bisects the buildings on the 4th and 5th floors, connecting them with each other and creating a generous roofed-over entrance area. Passages between the entrance hall and the base buildings allow direct access from the main local square in the south to the drive and main entrance in the north.

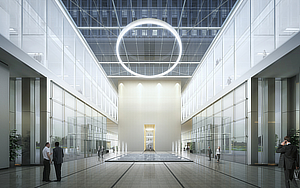

gmp von Gerkan Marg und Partner, Meinhard von Gerkan, China UnionPay Tower, Shanghai, China, sbp schlaich bergermann partnerThe differentiation of the building volumes and in the facade design emphasize the different functional areas, such as entrance hall, lounge, exhibition areas, staff canteen, and business rooms in the lower floors, offices in the main part of the tower, and the management level in the top floors of the tower. At the same time, the design elements provide a horizontal and vertical structure to the building.

Thanks to finely tuned detailing involving the glass facade and the structural steelwork, which was designed as a “tube-in-tube” system in cooperation with schlaich bergermann partner (sbp), it is possible to integrate the upright supports in the plane of the facade, creating shallow facade depths and, on the inside, functional areas without vertical support members. In the plinth area, the columns have been gathered to converge into four points, which allows for an open and transparent design of the entrance areas.
.
gmp von Gerkan Marg und Partner, Meinhard von Gerkan, China UnionPay Tower, Shanghai, China, sbp schlaich bergermann partner
Top
MATERIALS

steel, glass
Top
LOCATION

Continent
Asia
Nation
China [Zhōngguó/Zhōnghuá]
Municipality
Shanghai
Town
Shanghai


Top
MAP


Top
TYPOLOGY

ARCHITECTURE
Buildings for offices and professional practises
Offices
Vertical architectures
Skyscrapers
Top
CHRONOLOGY

Project
2015 - 2017     project winner of competition
Realisation
2017 - 2019
Top
CLIENT


China UnionPay
Top
DIMENSIONAL
DATA

Height
m. 150
Surface
sq.m. 137,729
above ground sq.m. 90,380
Top
STRUCTURES


sbp schlaich bergermann partner
Top
STAFF

Project
gmp · Architekten von Gerkan, Marg und Partner
Design
Meinhard von Gerkan and Nikolaus Goetze with Magdalene Weiss
Project management
Sun Yajin
Design team
competition:
Cai Lei, Chen Jingcheng, Ralf Donner, Martin Friedrich, Gao Shusan, Saeed Granfar, Sa Xiaodong, Katharina Schneider, Yu Xiaoliang, Zhang Bowei

detail:
Davide Biselli, Cai Lei, Ralf Donner, Fan Xiaodi, Liu Jinrui, Lu Yan, Katharina Schneider, Yu Xiaoliang
Top
CREDITS


Images © Crystal Digital Technology
Drawings © gmp von Gerkan Marg und Partner
Text edited by gmp von Gerkan Marg und Partner
Courtesy of gmp von Gerkan Marg und Partner
