BUILDING


Clipper Wharf
Top
DESIGNER


Patel Taylor
Top
DESCRIPTION

.
Patel Taylor, Clipper Wharf, London Dock, St George, Pankaj Patel, Andrew TaylorArchitect Patel Taylor and St George have completed the first new building at London Dock, the redevelopment of the famous former News International site in Wapping.

Clipper Wharf, a 57 homes residential development comprising of one, two and three bedroom apartments, is part of the first phase of the 220,000 sqm regeneration. This marks a new chapter in the site’s colourful history from its origins as a mercantile centre through the era of newspapers and printing of 1980s and beyond.

Patel Taylor, Clipper Wharf, London Dock, St George, Pankaj Patel, Andrew TaylorPatel Taylor was appointed by developer St George to design the masterplan, the Phase 1 buildings and the landscape for the prestigious new development, which takes inspiration from the site’s dockland heritage.

Clipper Wharf is located at the head of the new public space of Gauging Square. Conceived as a jewel-like, contemporary addition to the nearby Grade II listed Pennington Street warehouse, its eight-storey design is informed by the strong east-west axis set up by this 350m long building.

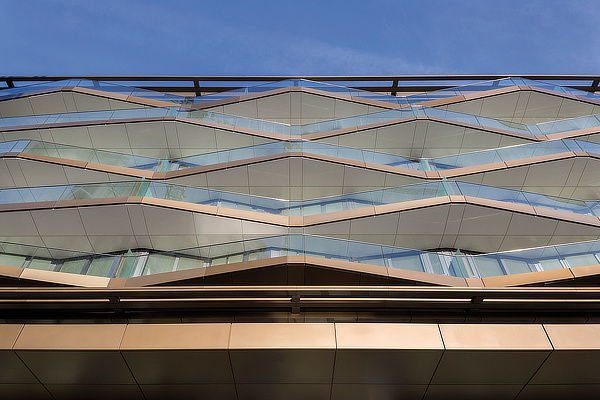

The new development’s axial podium frame extends the linearity of the warehouse while its glazed tower addresses aspects to the north and south. These principal facades are characterised by faceted glazing and anodized aluminium balconies that create a rich composition of varied angles, reflections and depth.

Each façade is enclosed within a ‘picture frame’ of bronze-coloured, anodized aluminium cladding. Balcony soffits are coloured a contrasting white to give a crisp edge to the balcony fronts and provide reflected light into the residential accommodation. The high quality of materials and detailing helps create a sense of robust permanence in keeping with the dockside setting.

Clipper Wharf will be followed by the completion of two more Patel Taylor- designed apartment buildings at Gauging Square - Admiral Wharf and Alexander Wharf.

Occupying half of the site will be a series of public gardens, developed by Patel Taylor in collaboration with French landscape architect Allain Provost.

Andrew Taylor of Patel Taylor said of project: “The building was conceptually developed as a complement to the permanent dockside architecture; a piece of ancillary design inspired by the iron cranes and winches that provided an interface between the docks edge and the brick warehouses.”
.
Patel Taylor, Clipper Wharf, London Dock, St George, Pankaj Patel, Andrew Taylor
About London Dock
Patel Taylor, Clipper Wharf, London Dock, St George, Pankaj Patel, Andrew TaylorGranted planning permission in 2014, the world-class Patel Taylor masterplan for London Dock comprises:
  • 1,800 homes, 486 homes of which will be affordable (30% of overall habitable rooms)
  • 210,000 sq ft of commercial floorspace
  • Six acres public open space including a major new civic square
  • Land for a six form entry secondary school and sixth form college (1,200 pupils)
The first residents move in to London Dock in winter 2016. In addition to the 90 Bow Arts Trust studios, London Dock is currently host to an immersive dining experience and a pop up park. In 2017 JTP architects (formerly John Thompson and Partners) will relocate their offices and studios to London Dock.

A fifth of the construction workforce is from the local borough and the development has already supported thirty local apprentices.
Top
LOCATION

Continent
Europe
Nation
United Kingdom
State
England
Region
London
County
Greater London
Town
London
Address
Virginia Street / Pennington Street / Quayside


Top
MAP


Top
TYPOLOGY

ARCHITECTURE
Residential buildings
Multiple dwelling
Top
CHRONOLOGY

Realisation
2017
Top
CLIENT


St George
St George House
Top
DIMENSIONAL
DATA

Consistence
57 homes
Lenght
m. 350
Top
LANDSCAPE DESIGN


Patel Taylor
Allain Provost
Top
STAFF

Project
Patel Taylor
Top
CREDITS


Photos © Peter Cook
Drawings © Patel Taylor
Text edited by Caro Communications
Courtesy of Patel Taylor | Caro Communications

Patel Taylor, Clipper Wharf, London Dock, St George, Pankaj Patel, Andrew Taylor



If you haven't already clicked on the photo strip at the top of the page, for the gallery of photos [9 images] and drawings [8 images], enter here
