Patch22
Top
DESIGNER


Frantzen et al
Top
CONTEXT

Relationship with the location
Frantzen et al, Tom Frantzen, Patch22, Amsterdam Noord, Karel van Eijken, Lemniskade Projects, Pieters Bouwtechniek
Top
DESCRIPTION

Patch22 is the highest wooden apartment building of the Netherlands
Frantzen et al, Tom Frantzen, Patch22, Amsterdam Noord, Karel van Eijken, Lemniskade Projects, Pieters BouwtechniekPatch22 is not only clad with a wooden façade but has a 30m high wooden load bearing structure in which the wooden columns, wooden beams and wooden walls remain visible in the interiors of the apartments. Fire regulations were met with by simply enlarging all the wood dimensions. In case of fire the outer layer of wood can burn up and will protect the structurally necessary wood by charring for up to 120 minutes. It is the first apartment building in the Netherlands to use this approach and therefore to make it possible to experience the atmospheric qualities of wood in a high-rise building.
Patch22 has very flexible apartment layouts
Frantzen et al, Tom Frantzen, Patch22, Amsterdam Noord, Karel van Eijken, Lemniskade Projects, Pieters BouwtechniekThe apartments, totally empty when sold, have a flexible layout by using hollow floors in which the installations can be adjusted as desired. Owners can install their own installations and pipes by easily removing the top layer of the floors. This way the owners can design and realise their own floor plans and even adjust them over the years. By negotiating a new kind of land lease contract with the city of Amsterdam it is made possible to change the function of the total building from housing to offices whenever this might be needed in future circumstances. The high ceiling height of 3,5 m net is not only spacious for the current owners but anticipates on different future uses.
Patch22 was developed by the architect himself
Frantzen et al, Tom Frantzen, Patch22, Amsterdam Noord, Karel van Eijken, Lemniskade Projects, Pieters BouwtechniekFRANTZEN et al architects and H20 installation consultancy & building management have jointly established Lemniskade Projects to realize Patch22 at their own expense and risk without the intervention of a traditional development company. Lemniskade Projects recently acquired the neighbouring plot and developed a new project called Top-Up. This will also become a 30m high wooden apartment building on top of an existing concrete structure. It is scheduled to break ground in june 2017.
.
Frantzen et al, Tom Frantzen, Patch22, Amsterdam Noord, Karel van Eijken, Lemniskade Projects, Pieters Bouwtechniek
Top
MATERIALS

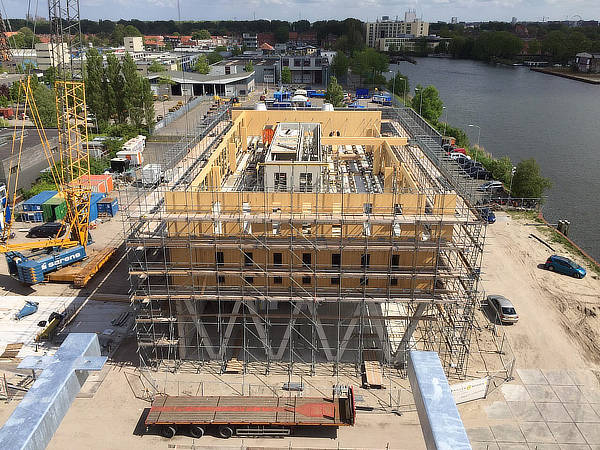

wood

Frantzen et al, Tom Frantzen, Patch22, Amsterdam Noord, Karel van Eijken, Lemniskade Projects, Pieters Bouwtechniek

Top
ECO-SUSTAINABILITY'

Architecture and sustainability

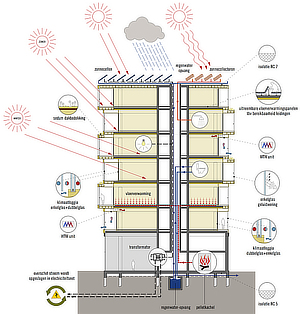

Frantzen et al, Tom Frantzen, Patch22, Amsterdam Noord, Karel van Eijken, Lemniskade Projects, Pieters BouwtechniekIn 2009 Lemniskade Projects won the Sustainability Tender Amsterdam Buiksloterham with their proposal Patch22. The tendering procedure was innovative because the proposals were judged on sustainability aspects instead of financial bids. The energy-neutral building provides its own energy by a large amount of solar panels on the roof and is heated by a C02 neutral heating system that uses ”Pellets” (compressed wood) as fuel. The abundant use of wood helps to store as much CO2 as possible in the structure of the building. The name Patch22 refers to Catch22, but with a positive approach to closed circularity in materials and energy consumption.
