BUILDING


U27
Nestlé Italiana spa
Top
DESIGNER


Park Associati
Top
DESCRIPTION

.

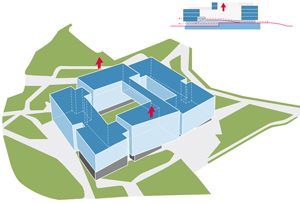

Park Associati, U27, Nestlé, Milanofiori, AssagoThe architectural design by Park Associati is based on an analytical approach to the articulated system of access to the Milanofiori Nord area, the pedestrian walkways and roads, climatic factors relating to the context and the goal of properly integrating the building into the overall masterplan. Its position as a link to an area of forest towards the north led to the development of a complex that while being based on a closed courtyard layout, enables a visual permeability to be maintained in terms of the routes that surround the building. The building has been designed in such a way as to create a visual continuity between the natural landscape of the wood at the north and the designed landscape of the site itself. The courtyard, reserved for users of the building, relates to the external landscape and is conceived as a kind of “secret garden”.

Park Associati, U27, Nestlé, Milanofiori, AssagoThe entrance, that faces onto a semi-urban piazza, has been conceived as a continuation of the main pedestrian access from the south-west of the site (directly connected to the metro station) while service vehicles are directed to the opposite end of the complex to an area that is completely hidden by ground. The main entrance hall is in direct visual contact with the internal courtyard and is flooded with natural light by a large, north-facing rooflight. The canteen area is a place for relaxing and an important area for social interaction that adds to the quality of the environment.

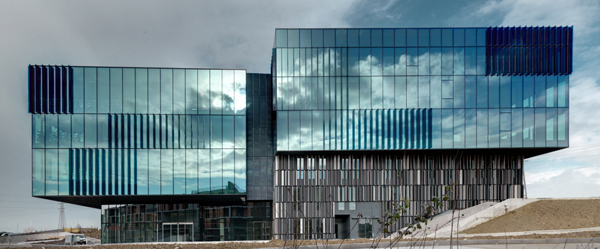

While the building appears compact and rational in plan, the elevations are articulated in a series of blocks allowing for a lighter and more fragmented composition. This is achieved by dividing the whole building into a number of segments, ‘suspended boxes’ that vary in size and height and each with a slightly inclined facade. The elevations establish a link with the context through the nature of the surfaces, perceived from different angles, they are sometimes made neutral allowing light to filter through, other times compact and reflective giving continuity to the natural surroundings. At certain points the composition is enriched with the addition of vertical blades in coloured glass that further articulate the volumes without affecting the level of transparency.

The raised part of the building is embedded into the ground in a natural way to create a secluded internal space on top of which sit volumes at different levels that house the building’s main facilities. The articulation of the building envelope and the rhythm of the structure relate to the open-planned interior spaces and act as a grid for generating different configurations for the internal circulation, enabling a high degree of flexibility.
.
Park Associati, U27, Nestlé, Milanofiori, Assago
Top
ECO-SUSTAINABILITY'

Park Associati, U27, Nestlé, Milanofiori, AssagoConsiderable importance has been given to energy issues and levels of energy consumption. The building is expected to receive a LEED certificate (Leadership in Energy and Environmental Design) “Core and Shell” in Gold class.
Top
LOCATION

Continent
Europe
Nation
Italy [Italia]
Region
Lombardy [Lombardia]
Province
Milan [Milano]
Town
Assago
Address
Via del Bosco Rinnovato, Milanofiori Nord (Autostrada A7, Milano-Genova)


Top
MAP


Top
TYPOLOGY

ARCHITECTURE
Buildings for offices and professional practises
Offices

LANDSCAPE ARCHITECTURE AND NATURAL ENVIRONMENTS
Landscape architecture
Public gardens
Top
CHRONOLOGY

Project
2011
Realisation
2012 - 2014
Top
AWARDS

2015
The Plan Award
Category Offices
Top
CLIENT


Milanofiori 2000 srl
Gruppo Brioschi Sviluppo Immobiliare spa
Top
DIMENSIONAL
DATA

Surface
site sq.m. 22,761
gross floor sq.m. 22,081
total mq. 34,092 (sq.m. 26,081 above ground, sq.m. 8,011 underground)
Volume
m³ 115,316
Top
STRUCTURES


General Planning
Top
LANDSCAPE DESIGN


Park Associati
Top
STAFF

Architect
Park Associati
Filippo Pagliani, Michele Rossi
Building plan
General Planning srl
Giovanni Bonini + Team GP
Landscape design
Proiter srl
Lorenzo Badalacco
(Building plan and construction supervision)
Systems
General Planning srl
Giovanni Bonini + Team GP
Art direction
Park Associati
Filippo Pagliani, Michele Rossi
Construction supervision
General Planning srl
Giovanni Bonini + Team GP
Design team
Park Associati
Filippo Pagliani, Michele Rossi
Marco Siciliano (design leader)
Marinella Ferrari, Stefano Lanotte, Lorenzo Merloni, Marco Panzeri, Davide Pojaga, Alessandro Rossi, Elisa Taddei, Paolo Uboldi
Fabio Calciati (renderings)

General Planning
Giovanni Bonini (RL, DL)
Paolo Varenna (Project Management)
Loris Colombo (design and structural supervision)
Luca Dagrada (design and systems supervision)
Laura Barat, Matteo Molteni, Luca Rini, Paolo Rossanigo, Antonio Virelli, Alberto Villa, Claudio Bertolini, Mimmo Vitetta, Luigi Zinco, Walter Cola, Andrea Cristaldi, Vittorio Viganò (CS), Claudio Bertagnolli, Manuel Schieder, Francesco Torchitti
Mario Pinoli, Giuseppe Zaffino (LEED)
Space planning
DEGW Italia srl
Guido Bastiani, Valeria, Romanelli, Giuseppe Pepe
Interior design
Park Associati
Filippo Pagliani, Michele Rossi

DEGW Italia srl
Guido Bastiani, Valeria, Romanelli, Giuseppe Pepe

Redesign Studio
Gianluca Rossi, Maria Quattrina
Coordination
Guido Levi
Energy certification
General Planning srl
Greenwich srl
Safety coordination
General Planning srl
supervisor: Giovanni Bonini
safety coordination: Vittorio Viganò
General contractor
Milanofiori 2000
Top
CREDITS


Photos © Andrea Martiradonna, Simone Simone
Drawings © Park Associati
Text edited by Park Associati
Courtesy of Park Associati

Park Associati, U27, Nestlé, Milanofiori, Assago



If you haven't already clicked on the photo strip at the top of the page, for the gallery of photos [18 images] and drawings [16 images], enter here
