BUILDING


Mulini Beach
Top
DESIGNER


3LHD
Top
DESCRIPTION

.

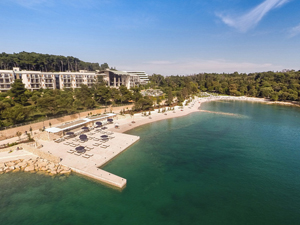

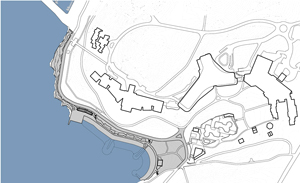

3LHD Mulini Beach RovinjMulini Beach is located in an attractive area of Rovinj, on the exit from the central part of the city and in the continuation of the promenade, in front of hotels Monte Mulini, Lone and Eden, wrapped in a rich green public park and green forest protective areas.


It is an extension of the city’s public area and the promenade whose primary function is to connect the city of Rovinj and park Punta Corrente.

3LHD Mulini Beach RovinjAn extremely important factor in the design of the beach was the relationship to existing terrain. With regard to the specific environment that is completely different depending on the time of day (the sea level varies in approximately 80 cm) due to the influence of the tides the design was dependent on the sea as a variable element, the sea has significantly influenced the creative decisions during the design process.

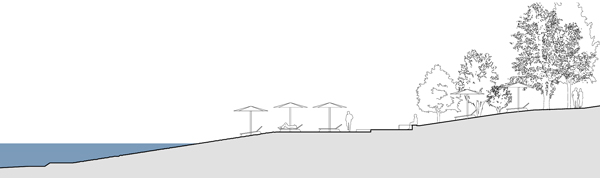

That is why the entire area of the beach is divided into two zones – a stretch from the marina to the beach pavilion that is greatly influenced by the waves, and a much calmer bay with a pebble beach. The first zone is designed as a natural topography, with lots of fractured surfaces for sunbathing and relatively sparse vegetation. The calmer Lone bay is formed as a pebble beach with lush vegetation that gently slopes into the sea.


Mulini Beach Bar, a beach facility with a large bar, locker rooms, showers, toilets and an information desk is located in the center of the zone. In the evening, the beach bar turns into a more intimate lounge with a cozy atmosphere by the sea. It is designed as a pavilion with a floating pergola roof – a steel structure that rests on 6 points, whose final shape was determined by an analysis of the sun movement through the summer months. The pergola, weighing 20 tons, has a span of 30m in length. It is constructed from steel sheets 8mm and 20mm thick, and has a total height of 20cm. The bar can be closed with a sliding wall that is stored inside a storage room during the day. The sliding wall is hung from the pergola construction. The plateau in front of the bar is equipped with infrastructure that allows small concerts and entertainment.
Top
LOCATION

Continent
Europe
Nation
Croatia [Hrvatska]
Region
Istria [Istra]
Town
Rovinj
Address
Šetaliste Lona (Monte Mulini)


Top
MAP


Top
TYPOLOGY

Main
ARCHITECTURE
Commercial buildings
Bars, cafeterias
Buildings for travel and tourism
Camping sites, service buildings, bathing establishments
Urban equipment and structures for public areas
Pedestrian areas, promenades
Other architectural structures
Pavilions, kiosks, facilities

LANDSCAPE ARCHITECTURE AND NATURAL ENVIRONMENTS
Landscape architecture
Waterfront
Additional
ARCHITECTURE
Buildings for recreational activities
Dance halls, discotheques, ballrooms
Top
CHRONOLOGY

Project
2012 - 2014
Realisation
2013 - 2014
Top
CLIENT


Maistra d.d.
Top
DIMENSIONAL
DATA

Surface
site sq.m. 13,515
Share
m. 3.4
Top
STRUCTURES


Ivan Palijan [Palijan d.o.o.]
Nebojša Buljan [RI ISA d.o.o.]
Top
LANDSCAPE DESIGN


Luka Brnić [Vrtni Design]
Top
STAFF

Design team
Saša Begović, Marko Dabrović, Tatjana Grozdanić Begović, Silvije Novak, Nevena Kuzmanić, Tin Kavurić, Sanja Jasika
Collaborators
Dragana Šimić, Vibor Granić, Ivan Ćurković
Structural consultant
Pavilion: Ivan Palijan [Palijan d.o.o.]
Glass roof on the pavilion pergola: Nebojša Buljan [RI ISA d.o.o.]
Project management
Abilia d.o.o.
Electrical engineer
Tomislav Godena [Skira d.o.o.]
Hydraulic engineer
Vladimir Paun [Termotehnika Paun]
Graphics and signage
Lana Cavar, Narcisa Vukojević
Technological design
Bar technology: Zoran Divjak [Dekode d.o.o.]
Specialist consultant
Underwater construction project: Josip Prcela [Strabag-hidroinženjering]
Irrigation project: Damir Čizmek [In-Aqua]
Top
CREDITS


Photos © Joao Morgado
Drawings © 3LHD Architects
Text edited by 3LHD Architects
Courtesy of 3LHD Architects

3LHD Mulini Beach Rovinj



If you haven't already clicked on the photo strip at the top of the page, for the gallery of photos [21 images] and drawings [11 images], enter here
