BUILDING


Busan Cinema Center / Busan International Film Festival
Top
DESIGNER


Coop Himmelb(l)au
Top
DESCRIPTION

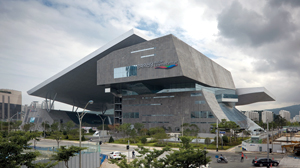

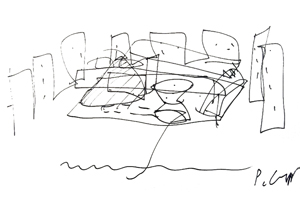

Coop Himmelb(l)au Busan Cinema Center Wolf D. PrixThe basic concept of this project was the discourse about the overlapping of open and closed spaces and of public and private areas.
While the movie theaters are located in a mountain-like building, the Center’s public space is shared between an outdoor cinema and a huge public space which is called Red Carpet Area – i.e. reception area.
The Red Carpet Area is actually three-dimensional: across a ramp which leads along a double cone the guests of honour reach the reception hall. Each of the two areas is overarched by a huge roof, one of them measuring 60 x 120 meters – the size of a soccer field – and cantilevering 85 meters.
The project, Wolf D. Prix / COOP HIMMELB(L)AU’s first in South Korea, addresses the theme of the roof as an architectural element – a topic which COOP HIMMELB(L)AU has been concerned with for a long time. Already in the Renaissance and the Baroque era the roof is transformed into a cupola, thereby achieving a particular significance. But it was Oscar Niemeyer and Le Corbusier who define the roof not anymore as a mere element of protection, but as a frame for the most diverse concepts. In Niemeyer’s house in Rio de Janeiro the roof is no longer following the floor plan, but is framing the view on the surroundings and nature. The roof of the Unité d’Habitation in Marseille of Le Corbusier is itself a landscape through its sculptural articulation.
Based on these ideas COOP HIMMELB(L)AU developed the roofs of the BMW Welt in Munich and of the Busan Cinema Center. The construction as a column-free roof covering a space comes closest to the idea of a “flying” roof, which is further differentiated by its three-dimensionally articulated ceiling and therefore not only a horizontal projection screen.

Wolf D.Prix
The Busan Cinema Center – A multifunctional urban plaza
Coop Himmelb(l)au Busan Cinema CenterCOOP HIMMELB(L)AU’s design for the Busan Cinema Center and home of the Busan International Film Festival (BIFF) provides a new intersection between public space, cultural programs, entertainment, technology and architecture creating a vibrant landmark within the urban landscape.
LED saturated outdoor roof elements acting as a virtual sky connect building-objects and plaza-zones into a continuous, multifunctional public urban space.
Media, technology, entertainment and leisure are merged in an open-architecture of changeable and tailored event experiences. The result is a responsive and changing space of flows acting as an urban catalyst for cultural exchange and transformation.
Project Description

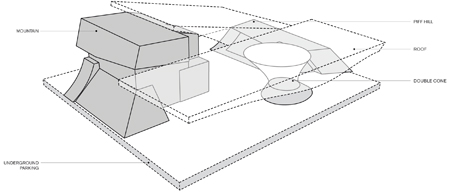

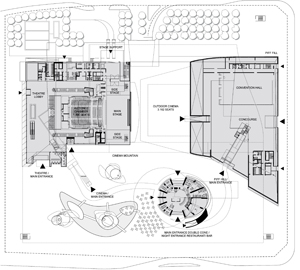

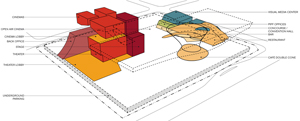

Coop Himmelb(l)au Busan Cinema CenterThe concept envisions an urban plaza of overlapping zones including an Urban Valley, a Red Carpet Zone, a Walk of Fame and the BIFF Canal Park. The urban plaza is formed by building and plaza elements sheltered by two large roofs that are enabled with computer programmed LED outdoor ceiling surfaces. The larger of the roofs includes a column-free cantilever of 85 meters over a multifunctional Memorial Court event plaza. The urban zones of the complex are formed by individual and recognizable building objects placed below the outdoor roofs. The building objects contain theater, indoor and outdoor cinemas, convention halls, office spaces, creative studios and dining areas in a mixture of sheltered and linked indoor and outdoor public spaces. The design of these spaces supports flexible, hybrid functionality that can be used both during the annual festival period and day-to-day use without interruption.

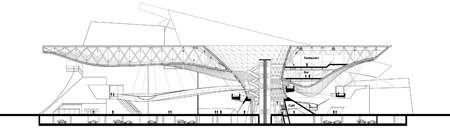

The urban zones defined by functional surfaces in plan are further articulated in a sectional dialogue between stone-clad “ground” forms of the Cinema Mountain and BIFF Hill, and the metal and LED clad “sky” elements of the roofs. The materiality of the building objects differentiates the spaces and articulates the architectural concept. Through their shape, placement and materiality, the various parts create a dynamic and informal tension between the ground and the roof.
Architecture and Cinema – the Main Roof
Coop Himmelb(l)au Busan Cinema CenterThe dynamic LED lighting surface covering the undulating ceilings of the outdoor roof canopies gives the Busan Cinema Center its symbolic and representative iconographic feature. Artistic lighting programs tailored to events of the BIFF or the Municipality of Busan can be created by visual artists and displayed across the ceiling in full motion graphics, creating a lively urban situation at night, but also visible during the day.
Imbedded in the architecture the lighting surfaces serve as a communication platform for the content of the Busan Cinema Center. Light as art, which is at the very nature of cinema, creates a unique and memorable atmosphere for the public urban plaza and architecture of the BCC.
Double Cone, Café and Roof Restaurant

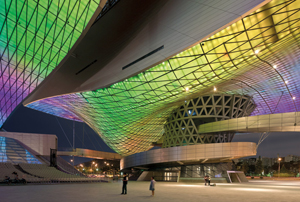

Coop Himmelb(l)au Busan Cinema CenterThe Double Cone is the symbolic landmark entrance element to the Busan Cinema Center and serves as the connective element between the Cinema Mountain and the BIFF Hill. Designed as a steel web drum on top of a series of radial concrete fin walls, the Double Cone also is the only vertical structural support for the large cantilevered roof acting as a large, singular column.
During day-to-day use, the ground level of the Double Cone contains a public café with outdoor seating, and the upper level links to a world-class restaurant, bar and lounge within the roof volume with views overlooking the APEC park and river beyond.
During the festival the Double Cone marks the Red Carpet Zone and VIP entrance to the “Busan Cinema Center”, and can be used as a pre-event space for VIP’s on the ground level, or as a pre-staging area for transfer to the Red Carpet procession to the outdoor cinema stage, or to the upper levels of the Cinema Mountain or BIFF Hill foyers via the red carpet spiralling ramp and bridges suspended from the roof.
Cinema Mountain
Coop Himmelb(l)au Busan Cinema CenterThe Cinema Mountain is a multifunctional building containing both a 1,000 seat multifunctional theater with fly-tower and full backstage support, and a three-screen multiplex comprised of a 400-seat and two 200-seat Cinemas. Separate entrances and foyers are provided for theater and cinema respectively, however the foyers and circulation are designed so that they can be combined depending on operational preferences.
Complete structural separation between the theater and the cinemas ensures optimal noise isolation for the theater space, which is designed as a first-class, flexible hall with seating on two levels and optimal sight lines and adjustable acoustics. A flexible proscenium type stage with side stages and fly-tower accommodates movable acoustical towers used to close down the stage volume for concerts and operatic theater, but can be easily moved for theater, musicals and other staged events. The stage includes a fore-stage lift that can provide additional seating, an orchestra pit or stage extension as preferred. Horizontally tracking curtains along the walls of the audience chamber can be hidden or deployed to adjust the acoustics of the space.
Urban Valley / Outdoor Cinema
The Urban Valley combines a flexible flat ground surface and large stepped tribunes of the BIFF Hill as seating for a 4,000 seat Outdoor Cinema. The Valley is sheltered by a large sculpted outdoor roof with an LED ceiling surface and is oriented towards a flexible stage and screen area on the outside of the Eastern façade of the Cinema Mountain. Accommodation for purpose built projection screens, stages, loudspeaker and lighting arrays are provided allowing for exterior performances to share the interior theater’s backstage facilities.

Coop Himmelb(l)au Busan Cinema Center
BIFF Hill
The BIFF Hill is a ground surface formation creating the tribune seating space of the outdoor cinema and accommodating the concourse, the convention hall, the BIFF-center, the BIFF-offices and the visual media center. Given the flexible organization of the ground plan, it can be easily adapted to the different requirements during festival and day-to-day usage.
Red Carpet Zone

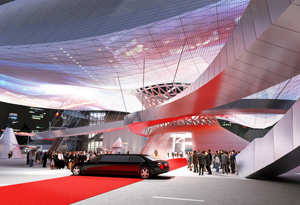

Coop Himmelb(l)au Busan Cinema CenterDuring the BIFF festival, or for other special events, the Red Carpet Zone is created by a special drop-off and media-event processional entrance at the Double Cone entrance element. A red carpet can be extended from the Double Cone event space and photo position to the south through the park and along a pier. VIP’s can enter from limousines along the street edge, or arrive by boat from the pier. Various options are provided for the red carpet circulation from the Double Cone to the different event and performance spaces depending on the scenario preferred, including a vibrant spiralling ramp from the staging level of the event space to the VIP restaurant lounge of the upper roof or to the BIFF Hill and Cinema Mountain on upper levels of the foyers. During non-event periods the Red Carpet Zone acts as the symbolic entryway into the Busan Cinema Center complex.
Memorial Court & Walk of Fame

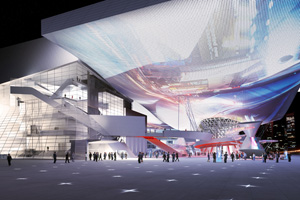

Coop Himmelb(l)au Busan Cinema CenterThe Walk of Fame contains the Memorial Court as a public plaza. Our proposal is to imbed sources in the ground surface projecting holographic images of the stars, directors, producers and the like who have been made a part of the Walk of Fame. Their avatars inhabit the memorial court as permanent residents; however their programs can be changed to show variable aspects of information over time or in relation to specific BIFF- events.
During non-event times the Memorial Court is used as a grand entryway to the Cinema Mountain and contains an outdoor dining area of the Double Cone Café overlooking the park and water beyond.
Due to the column-free sheltered roof above, the public plaza of the Memorial Court is a multi-functional event space that can be utilized for BIFF- or Busan City- events without interrupting the day-to-day activities of the Busan Cinema Center, or simultaneously with other events in the additional spaces.
BIFF Canal Park
Coop Himmelb(l)au Busan Cinema CenterThe BIFF Canal Park is proposed as an extension of the open network of public programs into the planned riverside park, and as a linking element between the river and the cinema complex. A new pedestrian footbridge is proposed to connect the Busan Cinema Center site with the park across the Boulevard to the South connecting the Double Cone with the APEC Park. An additional outdoor event ‘bowl’ is proposed surrounded by canals that can provide public and private boat access to the project site. Space for a future extension of the Busan Cinema Center project is proposed as an island among the canals, further integrating the cultural functions of the Busan Cinema Center project with the surrounding public space and landscape environment.
Top
VIDEO







Top
LOCATION

Continent
Asia
Nation
South Korea [Taehan Min'guk]
Metropolitan area
Busan
Town
Busan
Address
1467 Woo Dong, Haeundae-Gu (Centum City)


Top
MAP


Top
TYPOLOGY

Main
ARCHITECTURE
Buildings for recreational activities
Theatres
Cinemas
Other architectural structures
Roofs, casings
Additional
ARCHITECTURE
Commercial buildings
Shops
Bars, cafeterias
Restaurants
Transport buildings and structures
Garages, car parking, etc.
Top
CHRONOLOGY

Project
2005 - 2007     project winner of competition
Realisation
2008 - 2011
Top
AWARDS

2013
International Property Awards
Best Leisure Architecture South Korea
Top
BIBILIOGRAPHIC REFERENCES


Douglas Murphy, "Busan Cinema Centre. Coop Himmelb(l)au", Icon 116, february 2013, pp. 38-40
"Busan Cinema Centre, Busan International Film Festival, Busan, South Korea. Coop Himmelblau", GA Document 122, september 2012, pp. 8-27
Laura Aquili, Ergian Alberg, "Sotto il segno di una grande nuvola/Busan Cinema Complex", L'Arca 219, novembre/november 2006 [20 anni/20 years], pp. 64-69
"Cinema complex, Busan, South Korea. Coop Himme(l)blau", GA Document 91, june 2006 [International 2006], pp. 16-21
Top
CLIENT


Municipality of Busan
Top
AMOUNT


€ 100,000,000 - €/mq. 1,725 (excl. exterior spaces)
Top
DIMENSIONAL
DATA

Surface
site sq.m. 32,100
net floor (interior spaces) sq.m. 51,067
gross floor (interior spaces) sq.m. 57,981
built-up sq.m. 10,005 (without roofs)
Volume
m³ 349,708
Floors
9 levels above ground
1 level underground
Top
STRUCTURES


B+G Ingenieure, Bollinger und Grohmann
Top
STAFF

Project
COOP HIMMELB(L)AU
Wolf D. Prix / W. Dreibholz & Partner ZT GmbH
Principal-in-charge
Wolf D. Prix
Partner
Michael Volk
Project architect
Günther Weber
Design architects
Martin Oberascher, Jörg Hugo
Design team
Sergio Gonzalez, Rob Henderson, Guthu Hallstein, Matt Kirkham, Veronica Janovska, Dieter Segerer, Markus Baumann, Jasmin Dieterle, Anja Sorger, Jana Kucerova, Jan Brosch, Ivana Jug

Competition Team:
Victoria Coaloa, Rob Henderson, Paul Hoszowski, Jörg Hugo, Irakli Itoni, Alex Jackson, Matt Kirkham, Shannon Loew, Mona Marbach, Jens Mehlan, Tom Wiscombe, Burcu Bicer, Etienne Chanpenios, Monika Heliosch, Akvile Rimantaite
Plastic models, rendering
3D Design:
Renate Weissenböck, Jan-Ruben Fischer

Model:
Paul Hoszowski, Ernst Stockinger, Vincenzo Del Monaco, Johannes Spiesberger, Markus Erhardt, Hyoung Sub, Marc Werner

Renderings:
Armin Hess/Isochrom
Architect of record
Heerim Architects & Planners, Seoul / Korea
Jeong, Young Kyoon; Eu, Sung Mo; Lee, Mog Woon; Kang, In Soo; Kim, SeoniI; Shin, Dong Young; Chang, Hyo Sup
Structural consultant
B+G Ingenieure, Bollinger und Grohmann GmbH

Frankfurt / Vienna, Germany/ Austria:
Klaus Bollinger, Jan Lüdders, Daniel Pfanner, Astrid Münzinger, Jürgen Asmussen Jeon and Partner

Seoul / Korea:
Jeon, Bong-soo, Yoon, Heum-hak, Kim, Dong-gwan, Ms. Nam, Jung-hwa, Lee, Jang-hong, Ms. Han, Hye-hwa, Kim, Seung-a, Yi, Joon
Systems
Arup, Berlin, Germany
Bryan Cody, Till Pasquai, Tobias Burkhart, Akif Berkyuerek
Lighting design
Har Hollands, Eindhoven, Netherlands
Aerodynamics and weather resistant consultant
Wacker Ingenieure, Birkenfeld / Germany
Jürgen Wacker, Michael Buselmeier
Facades consultant
Face of Building, Oberpullendorf / Austria
Johannes Stimakovits, Harald Weidinger
Theatre consultant
Artec, New York / USA
Tateo Nakajima, Ed Arenius, Ted Pyper
Top
CREDITS


Photo © Woochang Choi Korea, Duccio Malagamba
Images © ISOCHROM.com, Vienna
Drawings © Coop Himmelb(l)au
Text edited by Coop Himmelb(l)au
Courtesy by Coop Himmelb(l)au

Coop Himmelb(l)au Busan Cinema Center



If you haven't already clicked on the photo strip at the top of the page, for the gallery of photos [24 images] and drawings [20 images], enter here
