Universiade Sports Center
Top
DESIGNER


gmp - von Gerkan, Marg und Partner
Top
DESCRIPTION

Crystalline architectural forms in a landscaped park
gmp von Gerkan Marg und partner Shenzhen Universiade Sports CenterIn 2005, the city of Shenzhen (on the mainland across the water from Hong Kong) applied to stage the 26th Summer World University Games in 2011. In terms of the number of athletes who take part, the summer World University Games is worldwide second only to the summer Olympics as a multisport occasion. The site has a great number of sporting facilities, matching the enormous growth of the city in the Pearl River delta. The overall scheme embraces the surrounding landscape to create a kind of “sports city”. Shenzhen was awarded the 2011 26th Summer World University Games in January 2007.
Planning objective
gmp von Gerkan Marg und partner Shenzhen Universiade Sports CenterThe Universiade sports center has to satisfy the functional requirements of both international sports events and the organization of other smaller and larger-scale events and concerts. The objective is to create a culturally significant, symbolic project for Shenzhen. Equal importance will be placed on the public facilities in the sports park. When no events are on, they are intended to be available to the public for leisure and recreation.
Master plan
gmp von Gerkan Marg und partner Shenzhen Universiade Sports CenterThe new city district offers various sports facilities, residential areas, and leisure and shopping facilities. Both the sports venues – the stadium, multifunctional hall and swimming hall – and the urban areas blend with the landscape at the foot of Mount Tong Gu Ling in the centre of the region. The design is inspired by the surrounding undulating landscape. This enables topographical modulation in the sports center area, with flows of people on various levels. An artificial lake connects the stadium at the foot of the mountain with the circular multifunctional hall in the north and the rectangular swimming hall west thereof. The central sports plaza is accessed via a raised promenade from the individual stadia. Two 150 m tall buildings forming the service centre round off the sports complex in the north.
Design concept

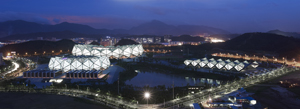

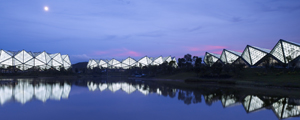

gmp von Gerkan Marg und partner Shenzhen Universiade Sports CenterThe overall complex is laid out as an extensive landscaped park with typical elements of a traditional Chinese garden. Watercourses and plants symbolize movement and development, while crystalline structures in the form of stones and rocks represent continuity and stability. The dialogue between the fluid landscape shapes and the expressive architecture of the stadia constitutes the conceptual framework of the design. The crystalline shape of the three stadia is additionally emphasized by the illumination of the translucent facades at night.
Main Stadium
gmp von Gerkan Marg und partner Shenzhen Universiade Sports CenterThe stadium is planned to be multifunctional, meeting the requirements of local, national and international sports occasions and events. Total capacity is 60,000, seated in three stands. The middle tier on the western side includes a 200-seat VIP stand with attached dignitaries’ boxes. Between the middle and upper tier there are 60 VIP boxes with their associated seating. All technical facilities required by participants and other functional areas are accommodated at field level beneath the stands. Guests of honor and media representatives can meet up here in the socializing zone provided. Access routes for individual user groups do not conflict. The sports plaza serves as the main access level for spectators. Access to the lower tier and steps to the middle and upper tiers alternate with kiosks and sanitary facilities. The broad passageways allow attractive glimpses into the circular shape of the stadium from afar, and make for easy orientation. The curved upper tier is accessed via twelve broad staircases leading off the circulating area, which allow impressive glimpses of the roof structure and the other stadia. The upper tier is divided into two parts, and as it is almost a circle, is doubly curved. In this way, the stadium has an exciting shape both on the inside and seen from outside.
Roof structure and facades

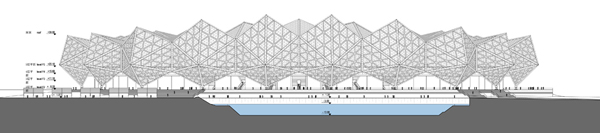

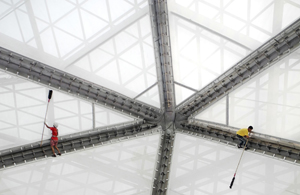

gmp von Gerkan Marg und partner Shenzhen Universiade Sports CenterThe roof structure projects up to 65 m, and is designed as a steel prismatic shell on a basis of triangular facets. The total diameter of the roof is 310 m lengthways and 290 m across. Both roof and façade have three layers each. The external façade layer is translucent glazing made up of triangular laminated safety glass panes or polycarbonate slabs. The interior membrane layer, likewise translucent, fulfils the requirements for shade and acoustics, and acts as a reflecting surface for the façade illumination. The folded primary and secondary steel structure is located in between. The major part of the technical installations is also integrated into this area.
Main Sports Complex
gmp von Gerkan Marg und partner Shenzhen Universiade Sports CenterThe indoor sports complex is designed as a circular multifunctional arena for indoor sports competitions as well as for ice-skating, mega-performances, social gathering and small-scale exhibition shows. The overall capacity is approx. 18,000 spectators. The seats are arranged on two stands, the first rows of the lower stand with a total number of 3,000 seats are movable. The seating organization is laid out for optimal viewing as well as for even circulation and distribution of the people. The arena offers supreme viewing conditions in all areas.
Swimming Complex
gmp von Gerkan Marg und partner Shenzhen Universiade Sports CenterThe swimming complex forms the third important module of the Shenzhen Universiade Sports Centre. Its architectural design takes into account the functional requirements of this type of building as well the overall architectural appearance of the crystalline volumes in the park. The overall capacity is approx. 3,000 spectators, the seats are arranged on two stands. The swimming complex is clearly divided into a competition and a leisure swimming area.
Top
LOCATION

Continent
Asia
Nation
China [Zhōngguó/Zhōnghuá]
Province
Guangdong
Town
Shenzhen
District
Longgang
Address
Huang ge Road, Long xing Road, Guling Road, Dayun Road


Top
MAP


Top
TYPOLOGY

ARCHITECTURE
Sports buildings
Sports centres
Stadiums, grandstands
Sports halls
Gyms and swimming pools

TOWN PLANNING AND URBAN DESIGN
Urban design and urban renovation
Areas and centres for sports
Top
CHRONOLOGY

Project
2006     project winner of competition
Realisation
2007 - 2011
Top
BIBILIOGRAPHIC REFERENCES


Douglas Murphy, "Universiade sports centre", Icon 101, november 2011, pp. 34-36
Top
CLIENT


Bureau of Public Works of Shenzhen Municipality
Top
DIMENSIONAL
DATA

Capacity
stadium 60,000 seats
multifunctional hall 18,000 seats
swimming hall 3,000 seats
Top
STRUCTURES


Schlaich Bergermann und partner
Top
STAFF

Design
Meinhard von Gerkan and Stephan Schütz with Nicolas Pomränke
Project architect
Ralf Sieber
Design team
Xu Ji, Alexander Niederhaus, Huang Cheng, Niklas Veelken, Martin Gänsicke, Stephanie Brendel, Marlene Törper, Andrea Moritz, Zheng Xin, Kralyu Chobanov, Chen Zhicong, Thomas Krämer, Lin Wei, Martin Schulte-Frohlinden, Plamen Stamatov, Christian Dorndorf, Lian Kian, Zhou Bin, Tobias Keyl, Li Ling, Helge Lezius, Meng Xin, Kuno von Haefen
Structural consultant
Schlaich Bergermann und partner
Sven Plieninger with Wei Chen
Systems
IG Tech
Lighting design
Conceptlicht
Acoustical consultant
Acoustic Design Ahnert
Facades consultant
Shen and Partner
Architect of record
SADI (stadium)
CNADRI (multifunctional hall)
CCDI (swimming hall)
BLY (landscape design)
Top
ANNOTATIONS


architectour.net
see other dossier: 2011 Universiade > Bao'an Stadium
Top
CREDITS


Photos © Christian Gahl
Drawings © gmp von Gerkan, Marg und Partner
Text edited by gmp von Gerkan, Marg und Partner
Courtesy of gmp von Gerkan, Marg und Partner

gmp von Gerkan Marg und partner Shenzhen Universiade Sports Center
