BUILDING


Kozala Cemetary
Top
DESIGNER


3LHD
Top
DESCRIPTION

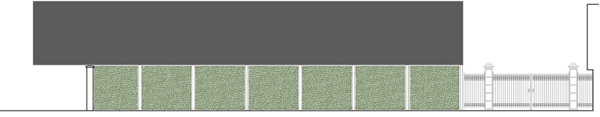

3LHD Kozala CemeteryThe reconstruction and extension of the administration building of the Kozala cemetery and the design of the square at the entrance to the cemetery is a significant improvement to that part of Rijeka. The complex is located at the fringe of a protected historical unit from the art nouveau period. Following an analysis of the task and of the existing situation, the need arose to maximally conceal the unattractive parts from visitors. This is why the new façade of the integral object is treated as a ‘floating’ backdrop to the square, on which the existing greenery is reflected. The existing object is concealed with a screen of greenery, surrounding it from the northern and eastern side, while the western side facing the cemetery forms the entrance atrium - the utility yard.

3LHD Kozala CemeteryThe design of the square in front of the building is a kind of intermezzo on the promenade curve from the direction of the park towards the central promenade in the cemetery, and its material presents a minimal difference from the promenade slabs. The slabs are made from granulated artificial crushed stone which is the universal recognizable element in cemeteries, and processed in three different ways: cast, terrazzo and polished terrazzo.

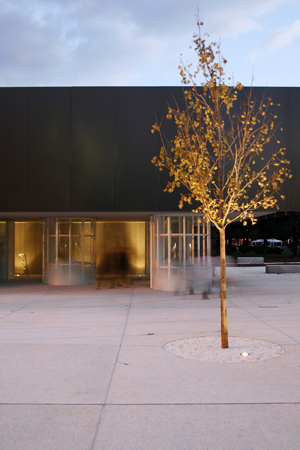

An essential part of the project concept is the greenery. The existing vegetation is carefully harmonized with new plants, together with the new facilities like benches and lighting. The third essential part is the preservation of the flower kiosks, by placing them below the ‘floating’ volume of the house into glass cylinders, thus additionally visually emphasizing the new intervention.
Top
LOCATION

Continent
Europe
Nation
Croatia [Hrvatska]
Region
Primorsko-goranska
Town
Rijeka
Address
Petra Kobeka 13


Top
MAP



View Larger Map
Top
TYPOLOGY

Main
ARCHITECTURE
Religious buildings
Cemeteries, chapels and crematoriums
Operations on existing buildings
Extension, superelevation
Additional
ARCHITECTURE
Buildings for offices and professional practises
Offices
Urban equipment and structures for public areas
Streets and squares
Top
CHRONOLOGY

Project
2002 - 2006
Realisation
2006 - 2007
Top
CLIENT


City of Rijeka
Top
DIMENSIONAL
DATA

Surface
Site area sq.m. 1659

Gross floor area sq.m. 433


Footprint sq.m. 216
Top
STRUCTURES


Branka Baricic, Joso Baricic (Staticki studio)
Top
LANDSCAPE DESIGN


Ines Hrdalo
Top
STAFF

Design team
Sasa Begovic, Marko Dabrovic, Tatjana Grozdanic Begovic, Silvije Novak, Ljerka Vucic, Sinisa Glusica
Collaborators
Mateo Bilus
General contractor
GRADING KUK
Electrical engineer
Branko Corko ( IPZ-elektroinzenjering 22), MEP engineering
Facades
Rijekakolor
Top
CREDITS


Drawings © 3LHD
Text edited by 3LHD
Courtesy by 3LHD

3LHD Kozala Cemetery



If you haven't already clicked on the photo strip at the top of the page, for the gallery of photos [10 images] and drawings [10 images], enter here
