BUILDING


Darwin Centre phase II - Natural History Museum
Top
DESIGNER


C.F. Møller
Top
DESCRIPTION

Visualising the collection
C.F. Moller Darwin Centre LondonExpressing a unique and appropriate architectural concept
The design of the second phase of the Darwin Centre project is characterised by a compelling and strong architectural concept in order to contain and represent vast entomological and botanical collections housed within the Natural History Museum.

The Cocoon
The solution to resolving the various Client requirements and to clearly symbolise the world class collection of specimens is the ‘Cocoon’, an architectural translation which forms the inner protective envelope.

The scale of the Cocoon form is such that it cannot be seen in its entirety from any one position. This emphasizes its massive scale. The shape and size give the visitor a tangible understanding of the volume of the collections contained within.

The collections housed in the Natural History Museum are among the world’s most extensive and treasured. In order to adequately preserve, maintain and represent this collection, a structure suitable in both its expression and physical construction was necessary. The Cocoon does this by creating an icon, which represents preservation, protection and nature. It is constructed of 300mm thick walls, with a defined geometric form based on mathematical equations. The surface finish is ivory-coloured polished plaster, resembling a silk cocoon, in which a series of expansion joints wrap around, resembling silk threads.
Respecting the site

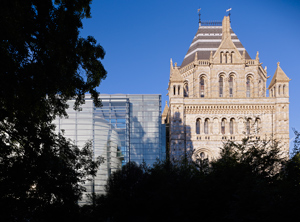

C.F. Moller Darwin Centre LondonRespecting the existing architectural heritage
The second phase of the Darwin Centre is intended to manage the difference in scale, architectural approach and to create a physical link between the original landmark Alfred Waterhouse Museum building and the more contemporary addition of the first phase of the Darwin Centre. It also serves as a landmark building in its own right, the full height glass wall partially revealing the solid 3-dimensional form of the cocoon within.

Bridging past, present and future
The second phase of the Darwin Centre improves and transforms the existing buildings into something more than the sum of its parts. The new building links existing and new buildings into a dialogue forming a set of dynamic, spatial experiences, bridging the past, present and future for the museum.

The smooth curved form of the immense cocoon is an iconic feature of the new Darwin Centre building and the public atrium space is dramatic, tall and filled with daylight.

The second phase of the Darwin Centre completes the western portion of the Natural History Museum estate, linking the existing buildings and enhancing and clarifying the circulation patterns within the museum for both staff and visitors.
Maximizing access for all
C.F. Moller Darwin Centre LondonPublic access to the scientific core of the second phase of the Darwin Centre takes the form of a visitor route up and through the cocoon, overlooking the science and collection areas without compromising the central activities of protection, preservation and research.

Passing through the Cocoon, the visitor enters a new space where the boundaries between the inner and outer worlds of scientific research are blurred.

The visitor can experience the Darwin Centre as a compelling and interactive learning space, observing the scientific and research activities without interrupting scientific work in progress.

Edited by C.F. Møller Architects
If you haven't already clicked on the photo strip at the top of the page, for the gallery of photos and drawings, enter here
Top
MATERIALS

steel, concrete, poliester

Cocoon Construction: Reinforced steel rods supporting woven mesh with sprayed concrete.
Cocoon Finish: Ivory-coloured polished plaster on insulation.
Façade: Ceramic frit double glazed curtain walling system.
Façade steelwork: Full height single span steel columns.
Roof: 3 layer ETFE roof with fritted pattern.
Atrium Flooring: Portland limestone

Top
LOCATION

Continent
Europe
Nation
United Kingdom
State
England
Region
London
County
Greater London
Town
London
Neighborhoods
Kensington and Chelsea
Address
Cromwell Road, Exhibition Road


Telephone
+44.(0)20.7942.5000
Website
Top
MAP



View Larger Map
Top
TYPOLOGY

Main
ARCHITECTURE
Museums and buildings for exhibitions
Natural history museums
Additional
ARCHITECTURE
Operations on existing buildings
Extension, superelevation
Top
CHRONOLOGY

Project
2001     project winner of competition
Realisation
2006 - 2009
Top
AWARDS

2011
Civic Trust Award

The jury commented on the awarding:
"This stunning modern building is an important new addition to The Natural History Museum, bringing people closer than ever before to the important scientific work it carries out by revealing the scientists at work. The contemporary extension offers visitors greater insight into the full spectrum of the museum's activities. The 'Cocoon' at the centre of the design is a beautiful and mysterious object, captured within a spacious glass atrium and the Angela Marmont Centre for UK Biodiversity and the Attenborough Studio inspire a new generation of scientists with their amazingly energetic and helpful staff. The new Darwin Centre makes an enormously positive and extremely elegant contribution to communities far beyond South Kensington, and is a fitting building to inspire scientists of every age."
2010
Association for Consultancy and Engineering Awards
Best Service Engineering Project: Large Firm
2009
Concrete Society Award
2009
Plaisterers’ Trophy Awards
‘Highly Commended’ Award
2009
Structural Award for Arts or Entertainment Structures
Top
BIBILIOGRAPHIC REFERENCES


Martin Keiding, "Darwin Centre anden fase/Darwin Centre phase II. C.F. Møller Arkitektfirmaet", Arkitektur DK, 1/2010, januar/january 2010, pp. 12-15
Stephen Greenberg, "Is the Cocoon an architectural one-liner? Arkitekfirmaet C.F. Møller", Architecture Today, 202, october 2009, pp. 42-48
Matt Clark, Ed Newman-Sanders, "Darwin Centre Phase Two, Natural History Museum, London", The Arup Journal 3/2009, pp. 44-51
Katy Dunn, "A new phase emerges. C.F. Møller Tegnestue", Blueprint 219, may 2004, p. 29
Top
CLIENT


Natural History Museum (NHM)
Top
AMOUNT


£ 78.000.000
Top
DIMENSIONAL
DATA

Surface
sq.m. 16,000
Floors
8 aboveground
Dimensions
Cocoon m. 60 x 12 x h. 28
Top
STRUCTURES


Arup
Top
LANDSCAPE DESIGN


C.F. Møller Architects
Top
STAFF

Project leader
Anna Maria Indrio
Gestione del progetto
Manly Development services
Structural consultant
Arup
Roman Buffat, Neil Chadwick, Matt Clark, Joseph Correnza, Ian Feltham, Mariella Gallo, Fred Gamester, John Lange, Bryan Marsh, Ed Newman-Sanders, Hayden Nuttall, Keisuke Tanikawa
Systems
Fulcrum Consulting
Acoustical consultant
Sandy Brown Associates
Quantity surveyor
Turner and Townsend
General contractor
HBG ltd
