Zamet Centre
Top
DESIGNER


3LHD
Top
DESCRIPTION

3LHD Architects Zamet Centre RijekaSituated in Rijeka’s quarter Zamet, the new Zamet Centre in complete size of 16830 m2 hosts various facilities: sports hall with max 2380 seats, local community offices, library, 13 retail and service spaces and a garage with 250 parking spaces.

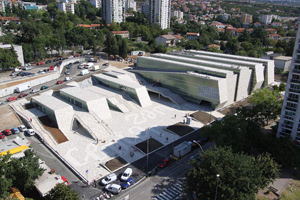

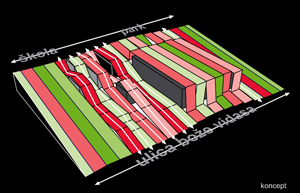

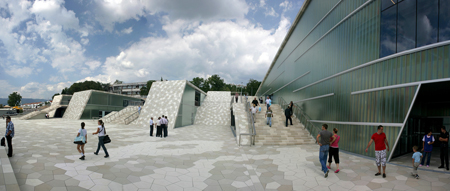

3LHD Architects Zamet Centre RijekaOne third of the sports hall’s volume is cut in the ground, and the rest of the Centre is fully fitted into the surrounding landscape. The building’s main architectural element are ribbon-like linear stripes stretching over the site in a north-south direction, functioning at the same time as an architectural design element of the object and as a zoning element which forms a public square and a link between the park on the north and school and B. Vidas street on the south.

The stripes were inspired by “gromača”, a type of rocks specific to Rijeka, which the centre artificially reinterprets by colour and shape. They are paved with 51.000 ceramic tiles designed by 3LHD and manufactured specially for the centre. The steel construction, girder span of 55 meters and their varying height allow the natural light illumination of the sports hall.

The hall has been designed in accordance with the latest world sports standards for major international sports competitions. The concept is based on flexibility of space. Playground size is 46 x 44 meters, for two handball courts. The hall contains all the supporting facilities for professional training and competition, and the auditorium designed as a system of telescopic stands enables the transformation for everyday use as well as for other activities such as concerts, conferences and congresses. Selected interior materials - wood and acoustic panels, suggests that the hall is a large living room for athletes. The main access to the hall and other facilities is located west of the hall from the public square and from the underground garage.
3LHD Architects Zamet Centre Rijeka
Top
LOCATION

Continent
Europe
Nation
Croatia [Hrvatska]
Region
Primorsko-goranska
Town
Rijeka
Address
Ulica Bože Vidasa


Top
MAP



View Larger Map
Top
TYPOLOGY

Main
ARCHITECTURE
Buildings for cultural activities
Libraries and media libraries
Cultural centres and community centres
Public buildings
Administration buildings
Sports buildings
Sports halls
Urban equipment and structures for public areas
Pedestrian areas, promenades
Additional
ARCHITECTURE
Commercial buildings
Shops
Bars, cafeterias
Transport buildings and structures
Garages, car parking, etc.
Top
CHRONOLOGY

Project
2004 - 2008
Realisation
2007 - 2009
Top
BIBILIOGRAPHIC REFERENCES


"Brick's back", A10 new European architecture 35, september-october 2010, pp. 53-60
"Zamet Centre sports hall, Rijeka, Croatia (3LHD)", A10 new European architecture 35, september-october 2010, pp. 56-57 (53-60)
Stefania Suma, "Centro polifunzionale a Fiume, Croazia / Zamet Centre, Rijeka, Croatia", L'industria delle costruzioni 413, maggio-giugno/may-june 2010 [Architetture per lo sport], pp. 54-63
Maroje Mrduljas, "Zamet Centre, Rijeka. 3LHD", Domus 930, novembre/november 2009, pp. 23-30
Top
CLIENT


Grad Rijeka / Rijeka Sport d.o.o.
Top
AMOUNT


€ 20.000.000
Top
DIMENSIONAL
DATA

Surface
site sq.m. 12,289
size sq.m. 16,830
footprint sq.m. 4,724
Volume
m³ 88,075
Capacity
sports hall 2,380 seats
parking 250 cars
Number
13 stores
Top
STRUCTURES


Berislav Medic, UPI-2M
Top
LANDSCAPE DESIGN


Ines Hrdalo
Top
STAFF

Design team
Sasa Begovic, Tatjana Grozdanic Begovic, Marko Dabrovic, Silvije Novak, Paula Kukuljica, Zvonimir Marcic, Leon Lazaneo, Eugen Popovic, Nives Krsnik Rister, Andrea Vukojic
Physical engineering
Mateo Bilus
Electrical engineer
Branko Čorko, IPZ-elektroinzenjering 22
Heat engineer
Mario Lukenda, Termoinzenjering-projektiranje d.o.o.
Systems
Slavko Simunović, HIT PROJEKT
Hydraulic engineer
Nenad Semenov, PASTOR
Vertical transportation
Rok Pietri, LIFT MODUS
Cladding consultant
Zeljko Arbanas, IGH PC Rijeka
Quantity surveyor
Marija Babojelic
Graphics and signage
Lana Cavar i Narcisa Vukojevic
Graphic design
Nikola Durek, "Typonine Zamet"
Top
CREDITS


Photos © 3LHD Architects, Domagoj Blazevic
Drawings © 3LHD Architects
Text edited by 3LHD Architects
Courtesy by 3LHD Architects
