BUILDING


Bodega Darien
Darien Winery
Top
DESIGNER


J. Marino Pascual y Asociados
Top
DESCRIPTION

The Architectural Concept
The delicate landscape where we had to work proved to be a very challenging foundation for our work and required a very carefully planned project design. We had to make the building blend in with the landscape and make the bodega look natural on the land by blurring the limits between the landscape and the building construction.
Based on this principle and the dimensioning resulting from the production information provided, we defined warehouse and cellar sizes in relation to the agro-industrial bodega area and started to design a plant which fitted in with the desired area. The plant’s size and dimension was adjusted to the initial intention which was to locate it on the hillock, but it was necessary to avoid that the presence of these bodies or warehouses was excessive. We had to build the bodega into the slope, making the warehouses underground and only revealing those sections which need natural light and external contact. As a result, the majority of the building constructed would be hidden, thereby maintaining the vegetation layer continuity and providing the bodega with an exceptional thermal and acoustic balance (road and railway).
Let’s analyse this matter. We observe the steep banks, and we note that we are used to seeing how the boulders emerge from them and can be seen.
Thus, in the steep bank above the vineyard, from the hillock which overlooks it, the bodega rises up, appearing like a jagged wall of big boulders revolving around each other and letting past the light.
Walking around Darien
The approach to Darien with the bodega facade in the distance mounted on the steep bank overlooking the vineyard could be unsettling for someone who does not know the significance of such an expressive and abstract formalization.

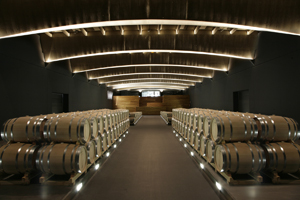

When we go inside, things seem to change. Everything becomes a rationality exercise that connects spaces and passageways, changing atmospheres, going from the bright hall to a sequential darkness which descends to the cores of the earth which protect the bodega per se. It is a dimly lit area, dark and mysterious, a panoramic enclosure where we perceive the red winemaking room, wine-coloured, a tone which contrasts with the shiny stainless steel vats. Then the cask room, also dimly lit, where we find only casks and the imposing arched ceiling beams which are shaped just like the casks. After that, the ageing or bottling room, with an atmosphere that urges respect and silence: the wine is resting and it needs quiet.
If you haven't already clicked on the photo strip at the top of the page, for the gallery of photos and drawings, enter here
Top
LOCATION

Continent
Europe
Nation
Spain [España]
Region
La Rioja
Province
La Rioja
Comarca
Logroño
Town
Logroño
Address
Ctra. Nacional 232 km.7


Telephone
+34.941.258.130
Website
Top
MAP



View Larger Map
Top
TYPOLOGY

Main
ARCHITECTURE
Commercial buildings
Restaurants
Rural buildings
Wine cellars and wineries
Additional
ARCHITECTURE
Buildings for cultural activities
Conference halls
Education buildings
Training centres and schools
Top
CHRONOLOGY

Project
2004
Realisation
2007
Top
BIBILIOGRAPHIC REFERENCES


Arketypo 10, mayo 2007, pp. 66-75
Top
CLIENT


Darien Bodegas
Top
STRUCTURES


José Luís Gutiérrez
Top
STAFF

Project management
J. Marino Pascual (J.M.P. y Asdos)
Design team
Roberto Murga, Ernesto Reiner, Tomás López, Inmaculada Sanz, Rubén Pérez, Alfredo Mendaza, Juan Carlos García, Francisca Terroba, Lourdes Miguel (J.M.P y Asdos)
Construction supervision
Miguel Blanco Sáez (J.M.P. y Asdos)
Climate control (HVAC)
Germán González (G.E. Engineers)
Lighting design
Carlos Cifuentes
Lighting engineer
Carlos Vicente
Construction management
Bernabé Morras Nieto
Quality control
Entecsa
Developer
Cnes. Cruz San Roman, S.A.
