BUILDING


Kiasma - Nikytaiteen Museum
Kiasma - Museum of Contemporary Art
Top
DESIGNER


Steven Holl

Top
CONTEXT

Steven Holl, Kiasma, Helsinki
Top
DESCRIPTION

.

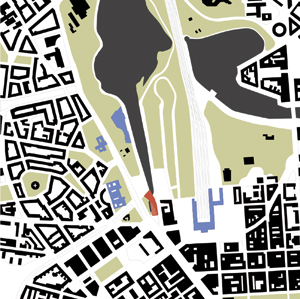

Steven Holl, Kiasma, HelsinkiThe site for Kiasma lies in the heart of Helsinki at the foot of the Parliament Building to the west, with Eliel Saarinen's Helsinki Station to the east, and Alvar Aalto's Finlandia Hall to the north. The challenging nature of this site stems from the confluence of the various city grids, from the proximity of the monuments, and from the triangular shape that potentially opens to Töölö Bay in the distance.

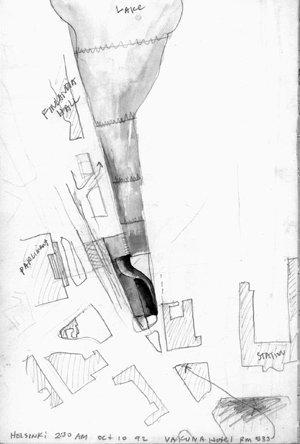

Steven Holl, Kiasma, HelsinkiThe concept of Kiasma involves the building's mass intertwining with the geometry of the city and landscape which are reflected in the shape of the building. An implicit cultural line curves to link the building to Finlandia Hall while it also engages a "natural line" connecting to the back landscape and Töölö Bay. In the landscape plan, extending the bay up to the building will provide an area for future civic development along this tapering body of water, which also serves as a reflecting pool for Finlandia Hall and new development along the south edge of the water. The horizontal light of northern latitudes is enhanced by a waterscape that would serve as an urban mirror, thereby linking the museum to Helsinki's Töölö heart, which on a clear day, in Aalto's word's, "extends to Lapland." The changes in elevation proposed with the water extension and it shallow depth would allow for parking decks and/or highway linkages which are presently part of various planning considerations.

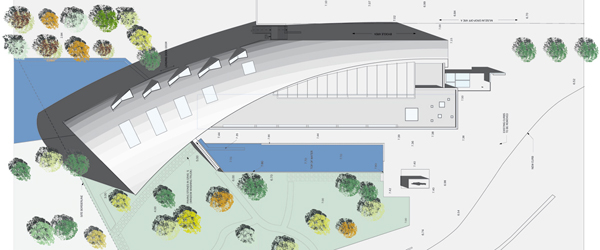

This water extension from Töölö Bay intertwines with and passes through the museum. The rectangular pool along the west elevation is the source of a slow recirculating system which gradually lowers the water level. The gentle sound of moving water can be heard when walking through the cusp of the building section which remains open for passage year-round. The ponds are not intended to be drained. Instead, they are allowed to freeze in winter according to a detail first devised by Eliel Saarinen for the accommodation of the expansion of water during freezing. At night the west pond reflects the internal light radiating from the museum west pond which expresses a "spatiality of night." During the early evening hours of the winter months, glowing light escaping from the interior of the building along the west facade invites the public inside.

The Helsinki Museum of Contemporary Art provides a variety of spatial experiences. We considered the range of contemporary artwork, and tried to anticipate the needs of a variety of artists including those whose works depend on a quiet atmosphere to bring out their full intensity. An exhibition space that works for an expressive and unpredictable artist such as Vito Acconci, must also work for artist such as Agnes Martin and Richard Tuttle. The general character of the rooms, which are almost rectangular with one wall curved, allows for a silent yet dramatic backdrop for the exhibition of contemporary art. These rooms are meant to be silent, but not static; they are differentiated through their irregularity.

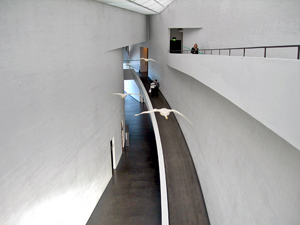

Particular to Helsinki is the horizontal natural light of the northern latitudes. The slight variation in room shape and size due to the gently curving section of the building allows natural light to enter in several different ways. This asymmetrically drives movement through a series of spatial sequences. In this regard the overall design becomes a slightly warped "gallery of rooms," where the spatial flow emerges from the combination of the horizontal light-catching section and the continuity of the internal space. This curved unfolding sequence provides elements of both mystery and surprise - which do not exist in a typical single or double loaded orthogonal arrangement of space. Instead, the visitor is confronted with a continuous unfolding of an infinite series of changing perspectives which connect the internal experience to the overall concept of intertwining or Kiasma.

Steven Holl, Kiasma, HelsinkiThis open-ended spatial system suggests an expanse that lies beyond, in contrast to rectilinear organization and "centered" composition that dictates the viewer's movement, or an expressionist dynamic that excludes the serenity necessary for viewing some types of work. The spaces of the intertwining curves in Kiasma avoid both the rigidity of a classical approach and the excessive complexity of expressionism. The dynamic internal circulation, with its curving ramps and stairs, allows for an open interactive viewing, inspiring the visitor to choose his or her own route through the galleries. Unlike a hierarchical sequenced or ordered movement, this open- ended casual circulation provokes moments of pause, reflection, and discovery.

Steven Holl, Kiasma, HelsinkiAnother concept behind the building's spaces is to create silence by eliminating the intermediate scale in the building's architecture. In this way, the art work can occupy the intermediate scale in contrast with the neutral mass of the wall. Rather than articulating columns, moldings, window openings, etc., the architecture is expressed through details such as the twist of a door handle, the edge of a stair, the exposed thickness of a slab of glass.

A common problem in the design of an art museum with galleries on multiple levels is that the stacked section only permits natural light to enter the upper level galleries, leaving the lower levels exclusively dependent on artificial light. In the Museum of Contemporary Art, Helsinki, we address this problem in two ways. First, the curved roof allows secondary skylights while horizontal light is deflected down through the section along the center. Thus natural light is able to penetrate both upper and lower levels. Second, the curved roof section with its "refracting" skylight introduces another means for distributing light to galleries below the top level. Because of the building's curving and intertwining morphology, because of the interwoven torsion of space and light, we have allowed for the different levels to be naturally lit. There is a correspondence between the internal nearly rectangular spaces, and the exterior's continuous uninterrupted surface.

Kiasma also serves as an "Art Forum", open and flexible for staged events, performances, dance, music, and seminars. The particular placement of the cafe at ground level - open to both the garden and the lobby - makes it adaptable to informal events, such as poetry readings or "round table" discussions. The auditorium, equipped with the latest video projection capabilities, has a continuous glass rear elevation, making it visible from the outside passage through the building. When there is a lecture taking place in the theater, this open view might draw in observers who are walking along the passage, to take part in the discussion. With Kiasma, there is a hope to confirm that architecture, art, and culture are not separate disciplines but are all integral parts of the city and landscape.
Top
LOCATION

Continent
Europe
Nation
Finland [Suomi/Finland]
Province
Southern Finland [Etelä-Suomen lääni/Södra Finlands län]
Region
Uusimaa [Uusimaa/Nyland]
District
Helsinki [Helsinki/Helsingfors]
Town
Helsinki [Helsinki/Helsingfors]
Address
Mannerheiminaukio 2, 00100 Helsinki


Telephone
+358.9.17336500
Fax
+358.9.17336503
Website
E-mail
info@kiasma.fi
Top
MAP


Top
TYPOLOGY

Main
ARCHITECTURE
Museums and buildings for exhibitions
Art museums
Buildings for recreational activities
Auditoriums and music centres
Additional
ARCHITECTURE
Commercial buildings
Bars, cafeterias
Top
CHRONOLOGY

Project
1993     project winner of competition
Realisation
1998
Top
AWARDS

1998
National AIA Design Award
Top
BIBILIOGRAPHIC REFERENCES


"Steven Holl. Bellevue Art Museum, Bellevue. Nelson Atkins Museum, Kansas City. Kiasma, Helsinki", Lotus Navigator 6, settembre/september 2002 [L'espansione dell'arte/The expansion of art], pp. 46-71
"Kiasma", Lotus Navigator 6, settembre/september 2002 [L'espansione dell'arte/The expansion of art], pp. 64-71 (46-71)
Basil Hallward, "Ars 01", Modo 218, febbraio-marzo/february-march 2002, pp. 85-88

C.M., "Kiasma", Modo 218, febbraio-marzo/february-march 2002, p. 87 (85-88)
Fulvio Irace, Dimenticare Vitruvio. Temi, figure e paesaggi dell'architettura contemporanea, IlSole 24 Ore, Milano 2001, pp. 44-47 [da Il Sole 24 Ore, 31 maggio 1998]
Yehuda Safran, "Guida ai perplessi/Guide for the perplexed", Lotus international 104, marzo/march 2000 [Informale e nuove strutture], p. 75 (70-75)
Philip Jodidio, Building a new millennium, Taschen, Köln 2000, pp. 234-243
Maria Argenti, Kiasma Museo di Arte Contemporanea a Helsinki. Steven Holl, Alinea Editrice, Firenze 2000
Paul Warchol (photo), "Cultura U.S.A./American culture", Domus 816, giugno/june 1999 [Cultura U.S.A./American culture], p. 162
"American Institute of Architects. 1999. Honors & Awards", Architectural record 5/1999, "Features" p. 134 (131-153)
Dietmar Steiner, "Museo di arte contemporanea Kiasma, Helsinki/Kiasma Museum of Contemporary Art, Helsinki", Domus 810, dicembre/december 1998 [Lo spirito nordico/The Nordic spirit], pp. 12-25 (Intervista con/interview with Steven Holl)
Karen D. Stein, "In the Kiasma Museum of Contemporary Art, Steven Holl creates a dramatic embrace of Helsinki's treasured architectural legacy", Architectural Record 8/1998, "Projects" pp. 86-99
Pier Moro (ed.), Raili e Reima Pietilä L'architettura sconosciuta/An Unknown Architecture, Torre Colombera Ed., Gorla Maggiore (VA) 1997, p. 16
Top
CLIENT


City of Helsinki
Finnish Ministry of Education
Top
DIMENSIONAL
DATA

Surface
square footage smq. 12.000
expositive space sqm. 3.600
Top
STRUCTURES


Insinööritoimisto OY Matti Ollila & Co.
Ove Arup & Partners
Top
STAFF

Project
Steven Holl Architects
Project architect
Vesa Honkonen
Design team
Tim Bade, Molly Blieden, Stephen Cassell, Pablo Castro- Estevez, Janet Cross, Bradford Kelley, Justin Korhammer, Anderson Lee, Chris McVoy, Anna Müller, Justin Rüssli, Tomoaki Tanaka, Tapani Talo
Architect of record
Juhani Pallasmaa KY
Juhani Pallasmaa (principal architect), Timo Kiukkola (project architect), Seppo Mäntylä, Heikki Määttänen, Timo Ruusuvuori, Seppo Sivula, Merita Soini
Structural consultant
Ove Arup & Partners - Guy Nordensen, Mahadev Ramen
Insinööritoimisto OY Matti Ollila & Co., Helsinki
Climate control (HVAC)
Insinööritoimisto Olof Granlund OY
Electrical engineer
Tauno Nissinen
Mechanical engineer
Ove Arup
Lighting engineer
L'Observatoire International
Systems
Olof Granlund OY
Consultant
Engineering Office Aulis Bertin, Ltd (vetro)
Theatre consultant
Teatek
Acoustical consultant
Arkkitehtitoimisto Alpo Halme
General contractor
Seicon OY
Top
ANNOTATIONS




Dossiers on Kiasma Museum
Top
CREDITS


Watercolors © Steven Holl
Photos © Lorenzo Servi, Angelo Giordano
Drawings © Steven Holl Architects
Text edited by Steven Holl Architects
Courtesy of Steven Holl Architects
